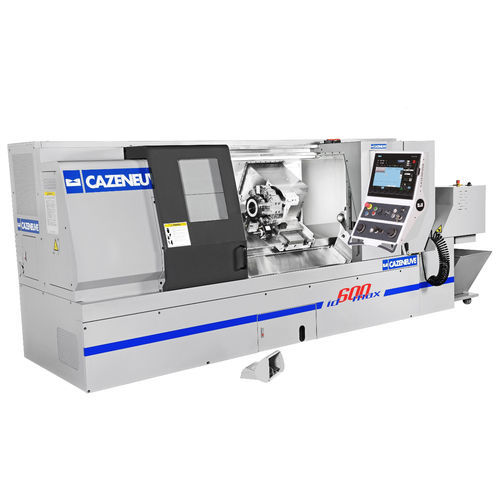

CNC lathe ID-MAX 600
horizontal2-axisinclined bed

CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 2
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 3
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 4
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 5
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 6
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 7
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 8
CNC lathe - ID-MAX 600 - CAZENEUVE - horizontal / 2-axis / inclined bed - image - 9
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
inclined bed
Spindle mount
A2-8
Number of tool stations
12 tools
Applications
for small parts production
Performance
precision, high-productivity
Other characteristics
compact
Associated function
milling
Diameter

610 mm
(24.02 in)

Spindle speed

3,500 rpm
(21,991.149 rad.min-1)

Axe X

300 mm
(12 in)

Axe Z

750 mm, 1,250 mm, 1,650 mm
(30 in, 49 in, 65 in)

Rapids on X

20,000 mm/min
(13 in/s)

Rapids on Z

20,000 mm/min
(13 in/s)

Nominal power

22 kW, 72 kW
(29.9 hp, 97.9 hp)

Overall lenght

4,100 mm, 4,600 mm, 5,000 mm
(161 in, 181 in, 197 in)

Overall width

1,850 mm
(73 in)

Overall height

1,880 mm
(74 in)

Weight

5,500 kg, 6,000 kg, 6,400 kg
(12,125 lb, 13,228 lb, 14,110 lb)

Description

This lathe with an inclined bed is appreciated by the industry for its robustness, its precision and its reliability, thanks in particular to its wide prismatic guideways. Both compact and versatile, this machine provides the user with great flexibility. Its machining capacities allow for the creation of small- and medium-sized parts.

Catalogs

No catalogs are available for this product.

See all of CAZENEUVE‘s catalogs
