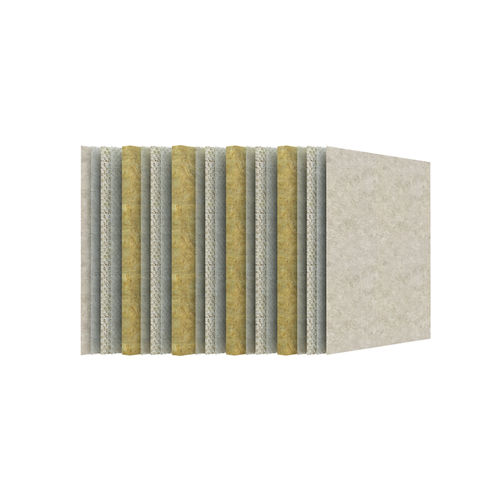

Basalt and ceramic core sandwich panel FirePan 50/120

glass facingfire-resistantcorrosion-resistant

The fire-, heat- and noise-resistant composite sandwich MultiCore panel FirePan 50/120 is made from non-combustible, environmentally friendly materials based on basalt fiber and ceramic matrix and impresses with the following properties: Light weight 100% natural Non-flammable and non-flammable Not smoldering No smoke or melts are released in the event of a fire High temperature resistance Low thermal conductivity High soundproofing properties Mechanically resilient Vibration dampening Good air permeability Can be processed with conventional cutting tools Chemically neutral Easy disposal The innovative solution for the production of prefabricated partition walls in dry construction, fire-resistant constructions in the field of building and container construction, as well as comparable applications with fire resistance of 120 minutes . The low specific weight of the FirePan 50/120 panel of approximately only 21 kg/m² and its high mechanical properties allow a significant reduction in the overall weight of the manufactured structures while maintaining structural stability. The panel is available ready to assemble and does not require any additional processing. The tongue and groove connection system we use allows for a significant reduction in assembly time. In addition, the good mechanical properties of the panel allow the use of screw, dowel and screw fasteners in the manufacture of flat and angular connections. Thanks to its antiseptic properties, FirePan 50/120 prevents the formation of mold and fungal infestation. *Product images shown are for reference only. Please note that actual products may differ from the published images.
