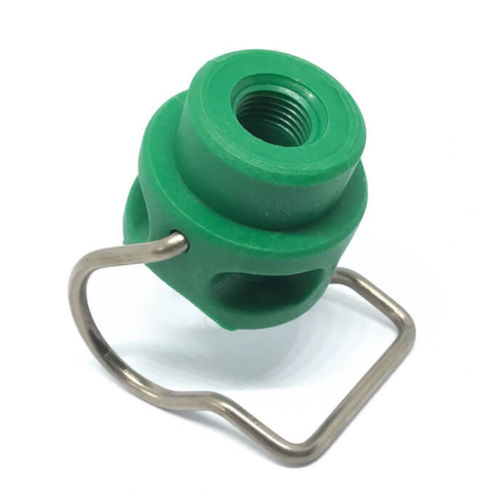

Pneumatic fitting

ringquickangle

Mounting of nozzles on standard tubing Pipes offtakes Installation of manometers Designed to quick-clamp our nozzles with threads from 1/8″ to 3/4″ O-Ring seal (maximum pressure varies with connector type) Good chemical and thermal-resistant materials (up to 80°C) Easy to mount: just drill a hole in the tube and hook the nozzle-holder (some models have fixing screws) ● AISI 316 normalized stainless steel spring clamp to fix nozzle-holder onto 1/2”, 3/4”, 1”, 1” 1/4, 1” 1/2, 2” normal sized pipes ● It’s enough: a) to make onto pipe one hole only b) to insert the nozzle-holder equipped with a seal c) to hook the nozzle-holder to the pipe by the spring clamp ● Very good seal at pressure up to 5 bar ● The materials can ensure an high chemical and thermic resistance (max 80 °C) ● On these quick clamp connectors can be mounted all our nozzles, having connection from 1/8” up to 3/4” MATERIALS ● Spring clamp:normalized AISI 316 stainless steel ● Nozzle-holder: Polypropylene glass filled molded. ● O-ring: NBR or Viton, on request
