Gas burner hot water tank VC series

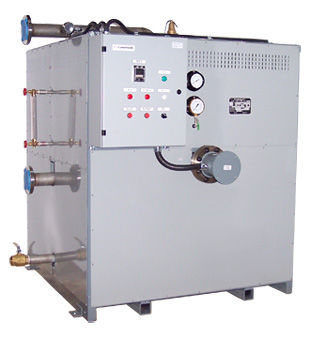

The Caloritech™ VCG Vertical Calorifier with Galvanized Steel Inner Shell consists of a hot water storage tank (vertical vessel, painted sheet steel housing) fitted with one or more flange heaters with incoloy® sheathed heating elements and a prewired control panel, best suited for hard water storage. The units are designed for easy installation -- simply connect the water and power lines and the system is ready to perform. Features & Benefits At A Glance available in a range of standard tank capacities, from 500L to 4500L (132 to 1188 U.S. gallons) available in a range of standard tank dimensions, from 24" x 81" to 60" x 112" tank weights range from 570 lbs (260 kg) to 3050 lbs (1380 kg), depending on tank capacity standard features include a pressure relief valve, inlet water diffuser, temperature control thermostat, high limit thermostat, pressure gauge and 3" inspection opening; optional manhole available standard connections include immersion heater, secondary flow, thermometer, pressure gauge, safety valve, high limit stat, secondary return, cold feed, drain and control panel; optional connections include rupture disc, anti-vacuum valve and manhole
