Chemical pump ETN EVO
centrifugalfor wastewaterfor industrial water

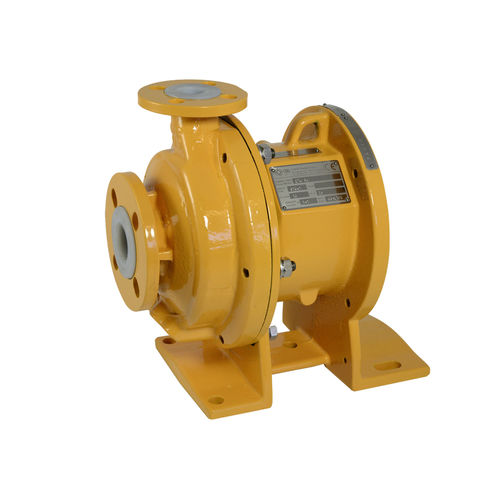

Chemical pump - ETN EVO - CDR Pompe - centrifugal / for wastewater / for industrial water
Chemical pump - ETN EVO - CDR Pompe - centrifugal / for wastewater / for industrial water
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for wastewater, for industrial water, for chemicals
Operation
magnetic-drive
Mobility
stationary
Domain
industrial, for the chemical industry, for wastewater treatment, for the mining industry, for the pharmaceutical industry, for the paper industry, for the cosmetics industry, for the textile industry, for methanizers, for the semiconductor industry
Applications
circulation, transfer, for materials handling, service, for hazardous locations, washing, purge, rinsing, chemical process, for industrial applications, recirculation, for harsh environments, unloading, loading, for tube and pipe cleaning
Material
PTFE, polypropylene, PP, plastic
Fluid specification
for aggressive media, for low-viscosity fluids, for corrosive fluids, for hazardous fluids, for flammable fluids, dye, for toxic fluids, flavouring
Voltage
400 V, 380 V, 230 V
Protection level
chemical-resistant, explosion-proof, hazardous-duty, corrosion-resistant, ATEX
Other characteristics
close-coupled, compact, horizontal mount, seal, skid-mounted, high-reliability, single-stage, flange, low-noise level, with closed impeller, rugged, coated, radial, electromechanical, rugged, single-acting, linear, for fluids, waterproof, with frequency converter
Flow

Max.: 68 m³/h
(2,401.39734 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 6 bar
(87.023 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 35 m
(114'09" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 90 °C
(194 °F)

Min.: -15 °C
(5 °F)

Description

Plastic and Fluoroplastic Lined Magnetic drive Horizontal Centrifugal pumps Sub-ISO designed. Lining: PP (Polypropylene), ETFE (Ethylene tetrafluoroethylene) Close-coupled execution Versatility: lthe ETN EVO offers a wide range of materials for the wetted parts: PP (Polypropylene) ETFE (Ethylene tetrafluoroethylene) Reliability: New internal circualtion path for top reliability, even under stress conditions Design: Made with a reliable quality as the UTN, but designed for smaller applications (low duty) TECHNICAL SPECIFICATIONS SHAFT SEAL TYPE: - Magnetic drive DESIGN: - Sub-EN 22858 - ISO 2858 CASING AND IMPELLER MATERIALS: - PP lined - ETFE lined IMPELLER TYPE: - closed EXECUTION: - close-coupled FLANGES: - UNI 1092-2 (ISO 7005-2) PN16RF drilling slotted ANSI150RF
