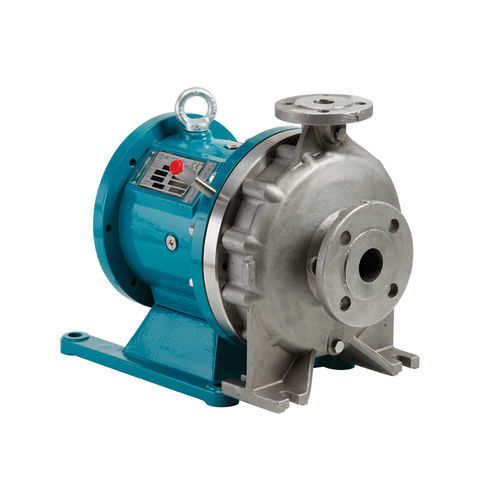

Chemical pump UTS EVO seriescentrifugalfor industrial waterfor cooling water
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for industrial water, for cooling water, for chemicals, oil, for biodiesel
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial, chemical, for wastewater treatment, for petrochemical applications, for the pharmaceutical industry, for the cosmetics industry
- Applications
- handling, transfer, process, cooling, circulation, service, washing, chemical process, for high-temperature applications, for industrial applications, high-temperature, for cooling systems
- Material
- stainless steel
- Fluid specification
- for low-viscosity fluids, for aggressive media, for medium-viscosity products, for corrosive fluids, for hazardous fluids, flavouring, for mineral oil, for fluids with lubricating properties, for AdBlue, for flammable fluids, for hot oil, for used oil, for refrigerant fluids, for toxic fluids, dye, for brine
- Voltage
- 400 V, 380 V, 230 V
- Protection level
- chemical-resistant, explosion-proof, hazardous-duty, standard, ATEX, IP55
- Other characteristics
- standard, mechanical, horizontal mount, with frequency converter, with free shaft, seal, single-stage, corrosion-proof, low-noise level, electromechanical, high-reliability, close-coupled, with closed impeller, OEM, rugged, heavy-duty, lubricated, waterproof, for fluids, radial, rugged
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 300 m³/h
(10,594.40002 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.06 psi)- Head
100 m
(328'01" )Min.: 0 m
(0'00" )Max.: 100 m
(328'01" )- Power
Min.: 0 kW
(0 hp)Max.: 90 kW
(122.37 hp)- Fluid temperature
Min.: -100 °C
(-148 °F)Max.: 300 °C
(572 °F)- Weight
Min.: 50 kg
(110.23 lb)Max.: 190 kg
(418.88 lb)
Description
Metallic Magnetic drive Horizontal - Single Stage - Process Centrifugal pumps
Materials : AISI 316 (1.4408)
Long Coupled (UTS) and Close Coupled (UTS-B) execution
Versatility: suitable for handling aggressive, toxic and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and pharmaceutical industries, where the need of high safety standards is the first requirement.
Reliability: the UTS are made by stainless steel.
AISI 316 : on bare shaft execution, the pump is also equipped as a standard with reliable oil lubricated bearing bracket, especially developed to be suitable even under heavy duty service.
Design: UTS range shares the same hydraulic design with the UCS series (mechanical seal pumps) which have been developed focusing on Industry’s requests.
TECHNICAL SPECIFICATIONS
SHAFT SEAL TYPE: - Magnetic drive
DESIGN: - EN 22858 - ISO 2858
STANDARD: - ISO 5199
CASING AND IMPELLER MATERIALS: - AISI 316 (1.4408)
IMPELLER TYPE: - closed
EXECUTION:: - UTS long-coupled
UTS-B : close-coupled
FLANGES: - UNI 1092-2 (ISO 7005-2) PN16RF drilling slotted ANSI150RF
MAXIMUM RATED PRESSURE @ 20°C: - PN 16
