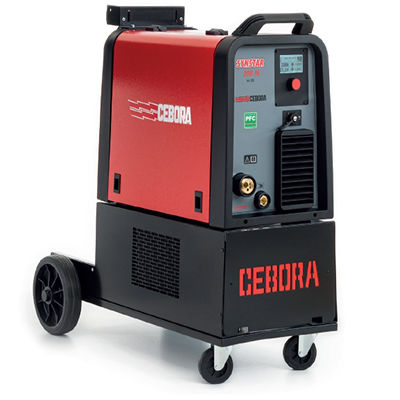

MIG-MAG welding power supply SYNSTAR 250 M

solid wiresingle-phaseinverter

User-friendly LCD Display Pre-arranged for Pulse and Double Pulse functions 4-roller wire feed unit and other 43 synergic curves Possibility of using also Cebora 2003 Push-Pull torch he new SYNSTAR 250 M is a synergic inverter single-phase ( 230V 50/60 Hz +15% / -20%) power source for MIG/MAG welding, with 4-roller Cebora wire feed unit Aluminium 4-roller-wire feed unit (Ø 30 mm) Equipped with power source transportation trolley, ground lead ( 3 m - 25 mm2) and clamp 43 synergic curves for Solid wire ( Ø 0,6/0,8/0,9/1,0 /1,2 mm) and flux-cored (Ø 0,9 mm). Flux-cored wires can be welded, either with or without shielding gas, by simple polarity inversion Pulse function upgrade [Art. 238],which allows to activate synergic curves dedicated to solid, mild steel, stainless steel, aluminum and CuSi3. It has got more than 80 welding programs Double current level function upgrade[Art. 813], The Double Pulse function can be achieved by enabling the Pulse upgrade The LCD Displayshows in real time the machine set up and allows the operator to read wire and gas type, current and thickness, voltage and wire speed The power source is supplied with many adjustable functions which can be accessed from the panel, including: - Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc - SHORT or PULSE process - Three importants specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler) The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 one.
