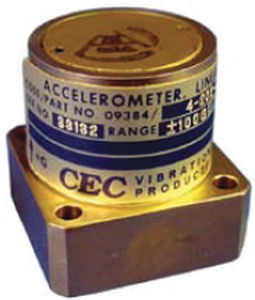

Biaxial accelerometer 4-202piezoelectriclow-sensitivity
Add to favorites
Compare this product
Characteristics
- Number of axes
- biaxial
- Technology
- piezoelectric
- Other characteristics
- low-sensitivity
- Acceleration range
Max.: 2,452 m/s²
(8,045 ft/s²)Min.: 49 m/s²
(161 ft/s²)- Frequency
Max.: 2,000 Hz
Min.: 300 Hz
Description
Features:
Operates from ±5g to ±500g
Wide temperature range
Low cross axis sensitivity
Applications:
Aircraft Flight Test
Missile/Rocket Test
Suspension Test
Deceleration/Brake Test
Description:
Performance characteristics of the CEC 4-202 Strain Gage Accelerometer are distinctly superior to any comparable instrument available today. It is one of the smallest temperature compensated strain gage accelerometers on the market. External dimensions are approximately 1 inch cubed, and weight is 3 ounces.
Designed for measuring static or dynamic accelerations perpendicular to the mounting surface, the 4-202 is available in ranges from ±5g to ±500g.
Operable temperature range is -70°F to +300°F (-57°C to +149°C). Combined linearity and hysteresis is conservatively rated at less than ±0.75% of full range output.
Catalogs
Strain Gage Accelerometer
2 Pages
