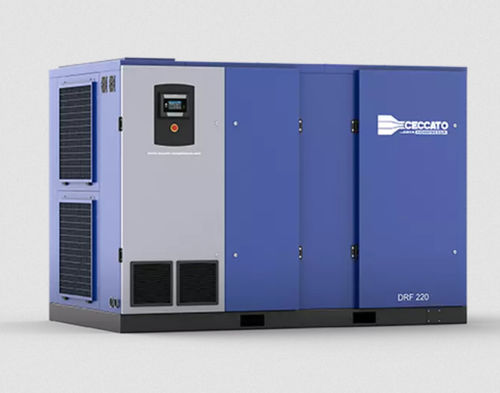

Screw compressor DRF 150 - 220 HP series
airelectrically-poweredstationary

Screw compressor - DRF 150 - 220 HP series - Ceccato Aria Compressa - air / electrically-powered / stationary
Screw compressor - DRF 150 - 220 HP series - Ceccato Aria Compressa - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-injected
Application domain
industrial
Applications
recovery
Other characteristics
fixed-speed
Pressure

Min.: 7 bar
(101.53 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 21,660 l/min
(5,721.97 us gal/min)

Max.: 28,645 l/min
(7,567.21 us gal/min)

Power

Min.: 110 kW
(149.56 hp)

Max.: 160 kW
(217.54 hp)

Noise level

Min.: 77 dB

Max.: 78 dB

Description

Reliable and stable, thanks to gear transmission Easy and immediate maintenance accessible from the front door by only one person High efficiency, with a longer life-cycle The DRF 151-200 HP is a complete range of air compressors that is an ideal solution for heavy industry, where high airflow rates are mandatory. By combining reliability and energy savings, DRF can be equipped with an energy recovery system, which recovers heat produced by the compressor and uses it for other production machines. This can allow you to optimise the energy consumption within the entire production system and save more on your energy costs. Very easy to use, it produces compressed air always at the maximum power, based on its fixed speed technology. The DRF 151 – 220 HP compressors are also equipped with dedicated panels, which facilitate the accessibility to components for their maintenance. The clever monitoring, comprising of a control system and an integrated connectivity ICONS, gives you live updates on the compressor’s status. The system allows also to schedule your maintenance services well in advance, decreasing the downtime of your production facility.
