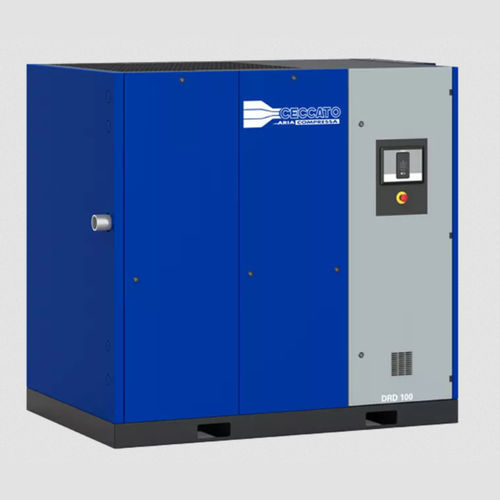

Screw compressor DRD 75 - 100 HP series
airelectricstationary

Screw compressor - DRD 75 - 100 HP series - Ceccato Aria Compressa - air / electric / stationary
Screw compressor - DRD 75 - 100 HP series - Ceccato Aria Compressa - air / electric / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
process
Other characteristics
high-performance, fixed-speed
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 7.5 bar
(108.78 psi)

Flow

Max.: 13,433 l/min
(3,548.62 us gal/min)

Min.: 10,433 l/min
(2,756.11 us gal/min)

Power

Max.: 75 kW
(101.97 hp)

Min.: 55 kW
(74.78 hp)

Noise level

Max.: 73 dB

Min.: 70 dB

Description

Excellent performance, also in harsh conditions Reduced energy costs, thanks to the newest improved technology Lower costs of maintenance thanks to the direct transmission Designed to resist under stress and during their application under the harshest conditions in medium businesses, the DRD 75 – 100 HP allows to decrease energy losses and gain energy savings and increase your production systems’ performance, thanks to the IE4 motors. The in-house designed elements the FAD has been increased, and the power consumption has been reduced. Besides, DRD 75 – 100 HP fits the environment with an ambient temperature of up to 46°C degrees. Easy to install, the DRD 75 – 100 HP grants low maintenance costs, thanks to the removable panels and, thus, all components are accessible very quickly. Being very silent, DRD 75 – 100 HP fixed-speed screw compressors can be installed directly to the point-of-usage, allowing for a more comfortable workspace. Available both on base and base with dryers and with different controllers, the DRD 75 – 100 HP at fixed speed offers a wide range of options to push the comfort and your production systems’ performance.
