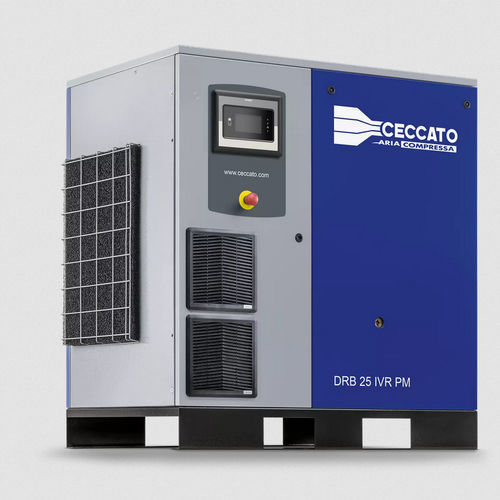

Screw compressor DRB 20 - 30 HP IVR PM series
airelectrically-poweredstationary

Screw compressor - DRB 20 - 30 HP IVR PM series - Ceccato Aria Compressa - air / electrically-powered / stationary
Screw compressor - DRB 20 - 30 HP IVR PM series - Ceccato Aria Compressa - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
recovery
Other characteristics
compact, high-efficiency, small, variable-speed
Pressure

Min.: 5.5 bar
(79.77 psi)

Max.: 12.5 bar
(181.3 psi)

Flow

Min.: 672 l/min
(177.52 us gal/min)

Max.: 4,028 l/min
(1,064.09 us gal/min)

Power

Min.: 15 kW
(20.39 hp)

Max.: 22 kW
(29.91 hp)

Noise level

Min.: 65 dB

Max.: 71 dB

Description

Decreased environmental impact thanks to the permanent magnet technology Extended life-cycle thanks to the optimal cooling system Heat recovery thanks to the specific option Permanent magnet technology applied to small-sized air compressors is a great solution for small and medium producers. This technology lets the compressors work efficiently at the maximum power. The DRB 20 – 30 HP IVR PM is also adapted to applications that require more flexibility in providing compressed air. The DRB 20 – 30 HP IVR PM compressors are more resistant since the oil cooling system allows the engine to work at the right temperature, regardless of the engine’s cycle. Being a compact solution, the DRB 20 – 30 HP IVR PM can be installed directly next to the point of use, cutting all costs related to the compressed air piping system.
