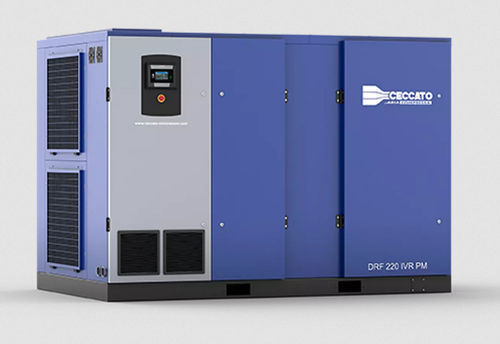

Screw compressor DRF 150-200 HP IVR PM series
airelectrically-poweredstationary

Screw compressor - DRF 150-200 HP IVR PM series - Ceccato Aria Compressa - air / electrically-powered / stationary
Screw compressor - DRF 150-200 HP IVR PM series - Ceccato Aria Compressa - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
recovery, machines
Other characteristics
high-efficiency, variable-speed
Pressure

Min.: 4 bar
(58.02 psi)

Max.: 10 bar
(145.04 psi)

Flow

Min.: 5,520 l/min
(1,458.23 us gal/min)

Max.: 33,100 l/min
(8,744.09 us gal/min)

Power

Min.: 110 kW
(149.56 hp)

Max.: 160 kW
(217.54 hp)

Noise level

Min.: 76 dB

Max.: 77 dB

Description

Wide savings on total costs of ownership High reliability thanks to the protection against dust and humidity CO2 footprint reduced by 10% compared to a similar model with fixed speed The DRF 150 – 220 HP IVR PM compressors offer high savings for the most powerful machines and are the most suitable choice for very large production systems that run several production lines. With total costs of ownership decreased by 25%, energy consumption savings of up to 45% and reduced CO2 emissions of 10%, they are a great alternative to fixed speed screw compressors. Their sustainable footprint can also be further improved by integrating the compressors with the energy recovery system, which avoids any heat waste, allowing it to be repurposed elsewhere in your production. The PM technology creates high efficiency while allowing the engine to work at 100% of its potential. A lower number of engine rotations makes DRF the perfect choice for production sites experiencing high fluctuation of compressed air requirements. The cooling system and the in-house component production grant optimal performance, increasing the DRF 150 – 220 HP IVR PM compressor productivity.

Catalogs

No catalogs are available for this product.

See all of Ceccato Aria Compressa‘s catalogs
