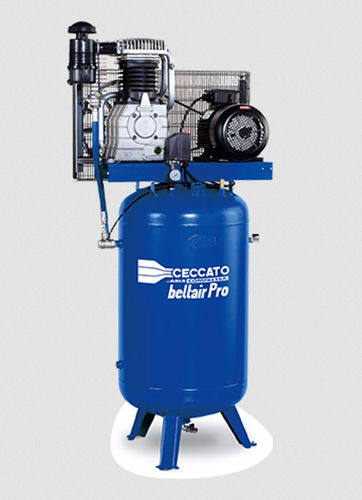

Piston compressor Beltair Pro series
airelectricstationary

Piston compressor - Beltair Pro series - Ceccato Aria Compressa - air / electric / stationary
Piston compressor - Beltair Pro series - Ceccato Aria Compressa - air / electric / stationary
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
cylinder, flexible
Other characteristics
vertical tank, high-pressure, single-stage
Tank volume

Max.: 500 l
(132.1 gal)

Min.: 27 l
(7.1 gal)

Pressure

Max.: 15 bar
(217.56 psi)

Min.: 10 bar
(145.04 psi)

Flow

Max.: 1,130 l/min
(298.51 us gal/min)

Min.: 255 l/min
(67.36 us gal/min)

Power

Max.: 7.5 kW
(10.2 hp)

Min.: 1.5 kW
(2.04 hp)

Weight

Max.: 265 kg
(584.2 lb)

Min.: 43 kg
(94.8 lb)

Description

Flexible availability, with a different solution for all needs Adapt to complex production systems, and with an exercise pressure over 11 bar Equipped with a cast iron cylinder, with a steel anti-hardship repair Designed specifically for professional applications, Ceccato’s Beltair Pro compressors are available in different versions to meet all our customer needs. Beltair Pro has specific characteristics and components which make it a solid and efficient choice for professionals. Beltair Pro range is equipped with cast iron cylinders, ON/OFF pressure switch regulation, an intermediate cooling system and, in the single-stage version, components that reduce the excessive noise levels. The Beltair Pro range comes in a variety of configurations to meet your needs: Beltair Pro carriage version, bi-cylindric single-stage (2 and 3 HP) and bi-stage (4 and 5.5, HP) compressor, with a handle to help its manoeuvrability Beltair Pro fixed version, with protective steel valve and a silent inlet filter Beltair V and VH Pro, with a vertical tank to solve the space issue Beltair H Pro, for applications where the pressure goes over 11 bar or in complex systems with a high-pressure fall between the compressor and the point of use
