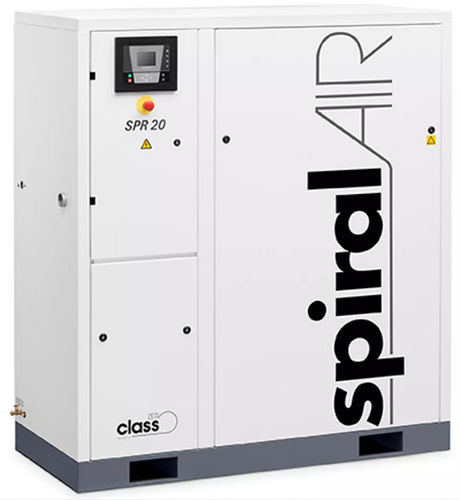

Screw compressor SpiralAir
airelectrically-poweredstationary

Screw compressor - SpiralAir - Ceccato Aria Compressa - air / electrically-powered / stationary
Screw compressor - SpiralAir - Ceccato Aria Compressa - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
for food applications, for dental applications
Applications
for pharmaceutical applications
Other characteristics
compact
Pressure

Min.: 8 bar
(116.03 psi)

Max.: 10 bar
(145.04 psi)

Flow

Min.: 174 l/min
(45.97 us gal/min)

Max.: 2,448 l/min
(646.69 us gal/min)

Power

Min.: 1.1 kW
(1.5 hp)

Max.: 22 kW
(29.91 hp)

Weight

Min.: 120 kg
(264.6 lb)

Max.: 687 kg
(1,514.6 lb)

Noise level

Min.: 53 dB

Max.: 65 dB

Description

Excellent performance at low temperature, with an efficient cooling system Installation at the point of usage with compact design that reduces the occupied space Noisy reduced up to 10 dB, with the silent canopy Suitable for dental, pharmaceutical and food sectors, SpiralAIR compressors provide the benefits of variable screw compressors creating compressed air without oil contaminations. These compressors decrease the energy costs by adapting the engine speed to the user’s demands. Thanks to the oil-free technology, further maintenance costs can also be decreased as SpiralAIR compressors do not require any changes to filters. SpiralAIR technology guarantees air compression through two helicoidal elements, which do not touch each other ensuring a constant flow of compressed air and a silent working system. The quiet SpiralAIR ensures the maximum working comfort coupled with its compact dimensions, it can be installed next to the point of use, reducing the occupied floor space. SpiralAIR is available in several configurations including two to four compression modules in Multi version.
