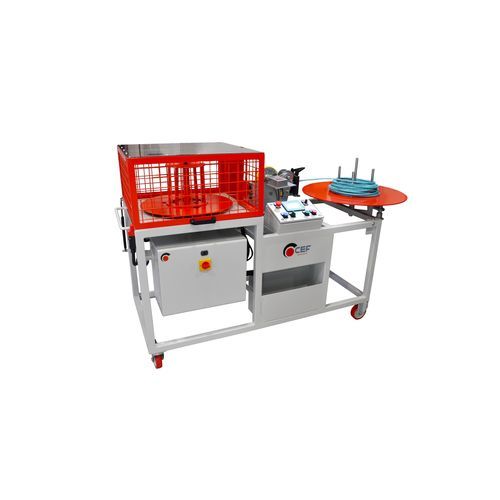

Winding/unwinding trolley to produce, measure and cut cable coils from reels or coils. It is equipped with a disc brake to tension the cable and with a measurement device for 30 mm cable.
FEATURES
• - Solid and light steel FRAME.
• - PROTECTION made of tubing and lexan.
• - WHEELS, two of them pivoting and equipped with a brake.
• - WINDING SPOOL in steel rods for a better spool winding.
• - UNWINDING SPOOL in steel rods to tension the spool core.
• - SHAFT to be screwed to the spool center to insert the reel.
• - DISC BRAKE for the unwinding of coils or reels.
CONTROL PANEL
• - Power supply 220 V - 50 HZ (optional: 380 V)
• - Speed adjustment with INVERTER and potentiometer from 0 to 100 rpm.
• - Gear motor 0,37 Kw
• - Control panel with general switch, insert button, emergency stop button, lever for reel rotation forwards and backwards, indicator lights.
FEATURES OF THE MEASUREMENT DEVICE “METALMEDIUM 30”
• - Measurement device for round cable with diameter from 2 to 30 mm (margin of error +/- 1-2%)
• - Cable cutter with lever (not suitable for steel and copper)
• - OPTIONAL: measurement device “METALMEDIUM 50” for cable with diameter from 2 to 50 mm
Dimensions (pxhxl) - 770 X 1200 X 1850
Weight KG - 195
Control - Electric
Speed RPM - 0/100
Voltage - 220
Power KW - 0,37
Measurement device - COD.110
Cable Ø Min.mm - 2
Cable Ø Max.mm - 30
Cutting - Manual
WINDING SPOOL
Carrying Capacity - 70
Wheel Ø mm - 550
Core Ø Min.mm - 150
Core Ø Max.mm - 250
UNWINDING SPOOL
Carrying Capacity kg - 70
Wheel Ø mm - 770
Core Ø Min. mm - 130
Core Ø Max.mm - 370
REEL
Shaft Ø mm - 25
Ø Max.mm - 700
Width min.mm - 85
Width max.mm - 350
Carrying Capacity kg - 70
