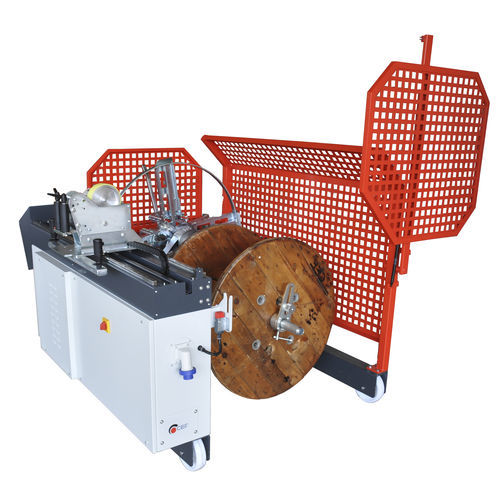

Motorized coiler 0800 . 1001S

cablecoilfor wire

Machine for drum and coil assembling. This machine has been designed with the precise aim of minimizing as much as possible the time needed to measure and wind cables on drums. This extremely simple, robust and safe machine allows only one operator to carry out all the daily measurements in a cable warehouse. The machine is easy to handle and suitable to move along an electric cable storage rack. FEATURES OF THE DRUM WINDER • - Steel SHAFT with cones. • - DRUM BLOCKING CONE for rapid clamping. • - DRUM LOADING through insertion of the shaft into the drum hole while the machine is moving. • - DRUM LIFTING with manual hydraulic cylinder pump working on an oil dynamic cylinder. CONTROL PANEL OPTIONS • - Power supply 220 V - 50 HZ (optional: 380 V) • - Speed adjustment with INVERTER and potentiometer from 0 to 70 rpm. • - 1,1 KW gear motor with integrated control panel with emergency stop button on the coils, indicator lights and control push-button strip. • - Electric handle with START button to wind the drum/ spool (very practical because it enables to control winding and layering at the same time). FEATURES OF THE FAST SPOOL COIL WINDER • - Spool with retractable levers (no need to remove wheels). • - Spool diameter 900 mm core 325 mm (With extenders for 450mm core). • - Shaft with cones for small drums (on removing the spool the shaft remains with a diameter 30, on which it is possible to wind small drums with steel cones) FEATURES OF THE MEASUREMENT DEVICE • - Measurement device for round cables with a diameter from 2 to 50 mm. (margin of error +- ½ %) • - Metric rubber coated wheel for a better grip and measurement.
