Motorized coiler take-up RRM

cablefor wirefor hoses

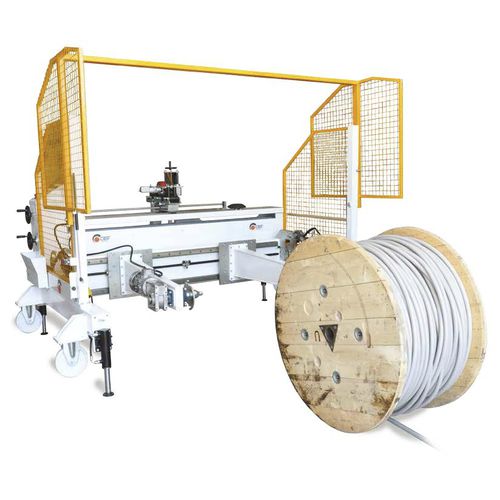

Drum winder with two moving pinching arms. This extremely simple, strong and safe machine allows the operator to assemble drums without much effort and in a very short time. The special feature of this machine are the two pinching arms which move on HIWIN linear guides and guarantee a high carrying capacity and easy sliding. Models: RRM 1250: For drums up to 1250mm diameter and carrying capacity 2000Kg. RRM 1600: For drums up to 1600mm diameter and carrying capacity 3000Kg. RRM 2200: For drums up to 2200mm diameter and carrying capacity 4000Kg. RRM 2600: For drums up to 2600mm diameter and carrying capacity 6000Kg. FEATURES OF THE DRUM WINDER • Drum PINCHING ARMS with cones controlled through a hand-wheel working on worm screws, HIWIN linear guides and skids. • DRUM LIFTING with electro-hydraulic pump • 380V ENGINE, drum winding at variable speed controlled through control panel. FEATURES OF THE MEASUREMENT DEVICE • MEASURING DEVICE for round cable with diameter from 2 to 60 mm (margin of error +/- 1-2%). • PLC touch screen integrated. • Manual cable layering through HIWIN guides and sliding blocks for better sliding and higher resistance. • LAYERING handle operated at the side of the machine, in accordance with accident prevention regulations.resistance. The models “RRM 2200” and “RRM 2600” have the measuring device “SPECIAL ONE” (code 121) for a diameter from 2 to 120 mm (margin of error +/-1-2 %)
