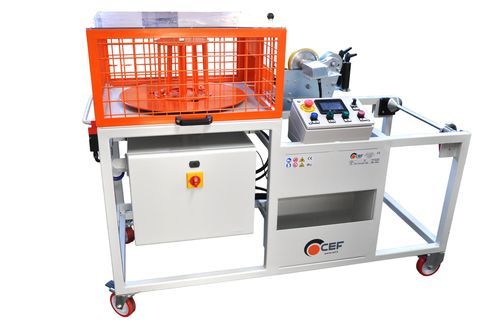

Hose reel ELECTRA 0350

cablemotorizedmobile

Coiler-uncoiler truck to pack, measure and cut cable coil from a reel, with a measurement device for 20 mm cable. ELECTRA has been designed to prepare cable coil by unraveling the cable directly from reel situated on the truck frame. FEATURES • - GUARD made of tube and lexan. • - WHEELS, with two pivoting and fitted with brake. • - SPOOL in steel profiles to easy tie the hank . • - SHAFT for unwinding coil with diameter 18 mm with aluminium cones. CONTROL PANEL • - Power supply 220 V - 50 VA . • - Speed adjustment with INVERTER and potentiometer from 0 to 100 rpm. • - Reduction gear 0,37 Kw with control panel with emergency button indicator lights FEATURES OF THE GAUGE MEASURER METAL 20 CODE 100 • - Measuring gauge for cable with diameter from 2 a 20 mm. (margin of error +- ½ %) • - Metric wheel in aluminum for a greater adhesion and accurate measurement. • - Mechanical measurer with manual reset. • - Cable cutter with lever. Dimensions (pxhxl) - 700 X 1200 X 1500 Weight KG - 153 Speed RPM - 0/100 Voltage - 220 Power KW - 0,37 Measurement device - COD.100 Cable Ø min. mm - 2 Cable Ø max. mm - 20 Cutting - Manual SPOOL Carrying Capacity - 70 Wheel Ø mm - 550 Core Ø Min.mm - 150 Core Ø Max.mm - 250 REEL Shaft Ø mm - 20 Diameter Ø Max.mm - 700 Width min.mm - 0 Width max. mm - 460 Carrying Capacity - 100
