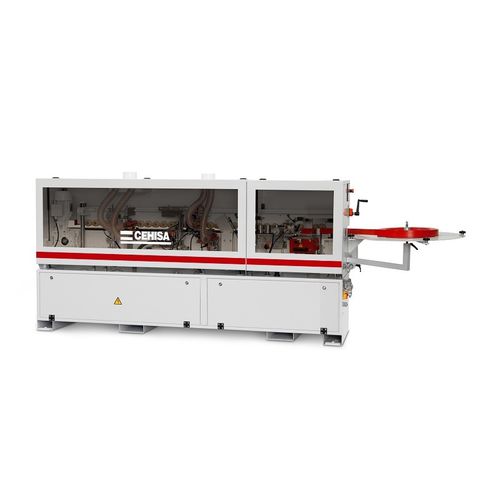

Automatic edge-banding machine COMPACT CS

for panels

The COMPACT CS edgebander in addition to the implementation of more powerful operating groups, a drag chain speed of 8 m/min, the possibilty to work 3mm thick edgebands, 60mm panels thick and up to 5mm solid wood strips, it adds the corner rounding group disegned to round the 4 corners of the panel edged with 2mm PVC / ABS band on up to 60mm thick panels in order to achieve its complete finishing. Panels: Particle board, plywood, MDF... from 8 to 60mm thick. Edges: Melamine, PVC, ABS, PP, wood, formica, acrylic... 0,4 to 3mm in rolls and up to 5mm in solid wood strips. Adhesives: Hot melt EVA and PUR (optional). Equipment: High frecuency motors controlled by independent electronic inverters, gluepot, end trim, top & bottom trim, corner rounding and PLC controlled by a colour LCD touch screen. Optional: DUOMELT, hot air blower, non-stick spray, cleaning agent spray, nesting, cabin lights...
