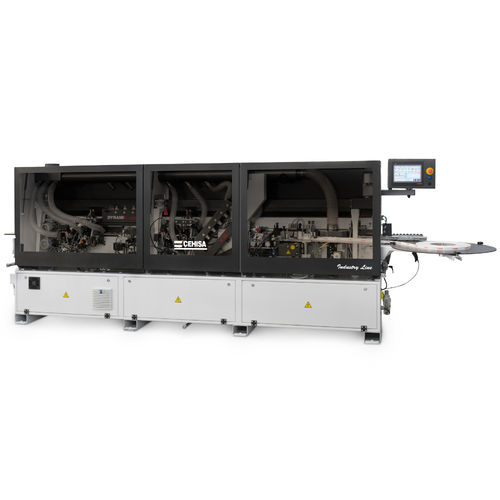

Automatic edge-banding machine DYNAMIC

DYNAMIC Series The DYNAMIC Series represents the new generation of CEHISA machinery which combines innovation​, versatility and reliability in a compact size edgebander. This new series incorporates C-Motion Tech. that offers maximum precision and agility when adjusting the working groups. C-Motion Tech. includes a working software with intuitive interface and motorized adjustment for up to 18 axes to control the edgebander, thus guaranteeing the highest quality finish. Technical Specifications Edge band thickness (Rolls / Woodstrips) : 0,4 - 3 / 5 mm Panel thickness: 10 - 60 mm Working speed: Up to14m/min Motorized axis: Up to 18 Courner rounding station: 2 HF motors Multi-profile tools: Yes / combined Centralized dusting system: Yes Compressed air connection: 6 - 7 BAR Installed power: 11 kW Dimensions (installed)* : 5150 x 680 x 1640 mm. Weight*: 1.500 kg *Depending on machine configuration
