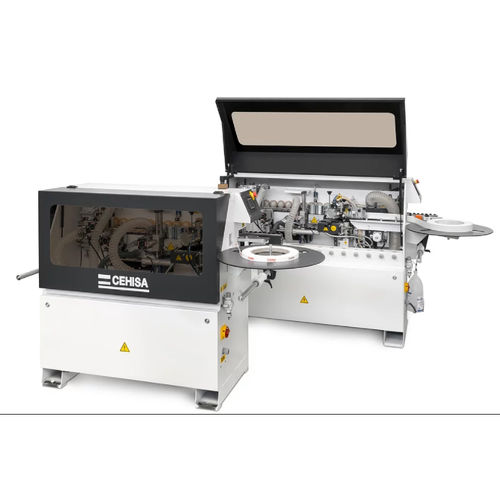

Automatic edge-banding machine OPTIM Series

for wood

maximum productivity IN A minImum space The most compact-sized industrial machine in the market, providing high performance at a competitive price Melamine/PVC/ABS/PP 0,4 - 2mm (3 mm Opt.) Thickness, min-max 8 - 50 mm Length, min-max 200 - unlimited mm Width min-max 75 - unlimited mm Working speed, m/min 5,5 Pre-milling cutters height, mm 30 / 50 Working air pressure, kg/cm² 6 - 7 Total electrical output, kW 3,4 Electrical connection, V/Hz 3 x 380 / 50 Dimensions installed, mm 2352x1190x1444 Net weight, Kg 620 OPTIM Series is equipped with an industrial chain with non-stick rubber pads and prismatic guides in the pressure beam. It also can be fitted with DUOMELT®, floating blades and pneumatic positioning ON/OFF in glue scraper and antiadherent agent spray at entrance
