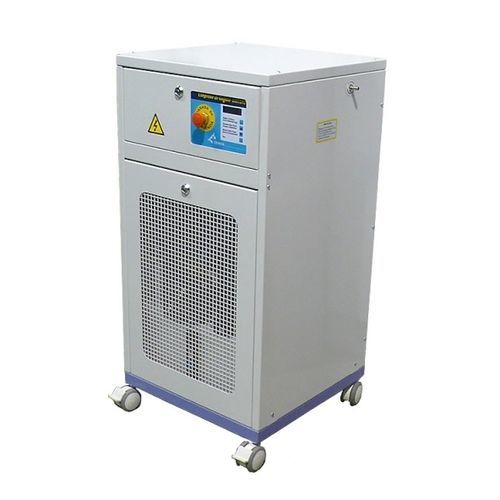

Piston compressor Oxicomp 3for oxygenelectricmobile
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- for oxygen
- Power source
- electric
- Portability
- mobile
- Lubrication
- oil-free
- Voltage
- 400 V, 230 V
- Tank volume
48 cl
(16.2 US fl oz)- Pressure
100 bar, 150 bar, 200 bar
(1,450.38 psi, 2,175.57 psi, 2,900.75 psi)- Flow
4,050 l/h
(1,069.9 us gal/h)- Power
3.2 kW
(4.35 hp)- Weight
310 kg
(683.4 lb)
Description
Feed pressure according on model from 2 to 6 bar (29 to 87 psi)
Standard components
Electronic circuit
Incoming oxygen deposit
Electric box
Incoming pressure regulator
Geared motors
Pressure transducer
Lower piston
Upper piston
Safety valve
Decompression valve
Refrigeration elements
Antireturn Valve
Start/Stop Buttons
Refrigerant ventilator
Emergency Stop
Crank
Maintenance
The estimated lifespan for segments and o-rings at 200 bars is demonstrated to be 4000 hours. The lifespan of segments and o-rings of the first stage is considerably greater. For maintenance work we recommend to have a spare set of orings and segments and a spare module (upper piston and lower piston) for quick replacements in case of checks or possible breakdowns.
Recommended spare parts
Upper and Lower pistons
Set of lock washers
Catalogs
OXICOMP3
2 Pages
