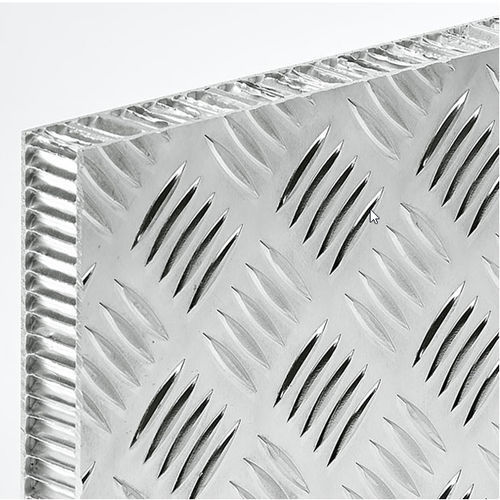

Honeycomb sandwich panel ALU series

aluminum facingfor interiorfor floor

COMPOCEL® FLOOR ALU-RIS, ALU-MAN is an aluminium honeycomb core bonded with two aluminium skins. The upper face (thickness from 2mm) can be chosen among different antiskid/ anti-slip coatings (almond pattern, rice corn pattern, etc.). As this panels is often used as flooring, where superior mechanical properties are required, the preferred thickness of the aluminium foil is 70 microns (high density), bringing the total thickness of the panel up to 20mm. A - ALUMINIUM SKINS with anti-slippery coating from 2mm B - STRUCTURAL ADHESIVE C - ALUMINIUM HONEYCOMB CORE (Alloy series 3000*) with hexagonal cells Foil Thickness: 70 microns D - ALUMINIUM SKINS Raw aluminium from 1mm thickness
