5-axis CNC machining center MICHELANGELO HL
verticalbridgefor aluminum

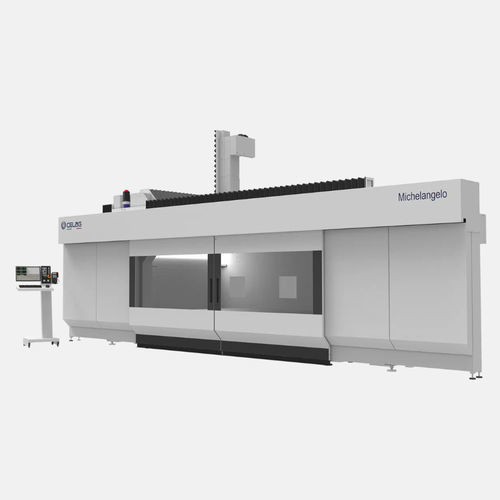

5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum - image - 2
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum - image - 3
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum - image - 4
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum - image - 5
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / bridge / for aluminum - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
bridge
Machined material
for aluminum, for composites, for wood, for plastics, for resin
Spindle mount
HSK F63
Associated functions
milling
Applications
for the automobile industry, for medical applications, for the aerospace industry
Other characteristics
high-speed, high-precision
X travel

4,000 mm, 5,000 mm, 6,000 mm
(157.48 in, 196.85 in, 236.22 in)

Y travel

1,800 mm, 2,600 mm
(70.87 in, 102.36 in)

Z travel

1,200 mm
(47.24 in)

Rotational speed

Min.: 7,500 rpm
(47,124 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Min.: 10 kW
(13.6 hp)

Max.: 25 kW
(33.99 hp)

Description

MICHELANGELO HL is a 5-axis portal machining center with mobile bridge designed for high-speed machining of composite materials and light alloys. Built to operate at high speed and on the most complex three-dimensional shapes, thanks to the advanced structural design that allows to reduce vibrations to a minimum and to the large size of the work area, it is used in many sectors, from the trimming of plastic and composite materials milling of resin models and aluminum molds. SUCTION AND CLOSING The Michelangelo HL machining center can be equipped with an extremely effective suction system to be able to deal with even the most difficult materials. The Michelangelo HL work center can be equipped with a system of sky bellows that limit the escape of fumes, dust and shavings from the work area. In addition to preserving the machine mechanics, this application also helps to maintain a cleaner and healthier environment for the operator. MATERIALS TREATED The machining centers, as we said earlier, are widespread and appreciated in industrial processes also for their ability to work many materials. Advanced materials Polyurethane MDF NDUSTRIAL APPLICATIONS The 5-axis mechanical processes are used to make components and semi-finished products in different sectors, among which the most relevant are: cnc in the automotive industry are used to make resin and aluminum molds, style models, trimming of plastic, carbon and composite components cnc in the medical industry are used to cope with an increasingly high demand for processing dictated by the aging population that is playing an important role in the growth of the sector.

VIDEO
