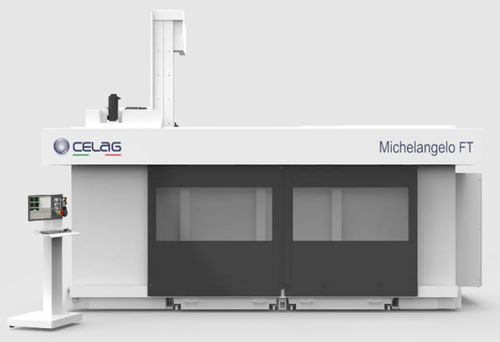

5-axis CNC machining center MICHELANGELO FT
verticalgantryfor aluminum

5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum - image - 2
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum - image - 3
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum - image - 4
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum - image - 5
5-axis CNC machining center - MICHELANGELO FT - Celag Srl - vertical / gantry / for aluminum - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
gantry
Machined material
for aluminum, for composites, for resin
Number of tool stations
12 tools
Applications
for the automobile industry, for medical applications, for the aerospace industry
Other characteristics
high-productivity, high-speed
X travel

3,400 mm, 4,400 mm, 5,400 mm
(133.86 in, 173.23 in, 212.6 in)

Y travel

1,500 mm, 2,500 mm
(59.06 in, 98.43 in)

Z travel

1,200 mm
(47.24 in)

Power

6 kW, 8 kW, 11 kW, 13 kW
(8.16 hp, 10.88 hp, 14.96 hp, 17.68 hp)

Work feed X-axis

80,000 mm/min
(52 in/s)

Work feed Y-axis

80,000 mm/min
(52 in/s)

Work feed Z-axis

80,000 mm/min
(52 in/s)

Description

Michelangelo FT is a 5-axis gantry machining center with mobile beam designed for high-speed machining of composite materials and light al-loys. FT is the ideal solution for trimming plastic and composite materials, which thanks to its technical characteristics ensure high productivity and production quality Built to operate at high speed and on the most complex three-dimensional shapes, thanks to the advanced structural design that allows to reduce vibrations to a minimum and to the large size of the work area, it is used in many sectors, from the trimming of plastic and composite materials milling of resin models and aluminum molds. SUCTION AND CLOSING The Michelangelo FT machining center can be equipped with an extremely effective suction system to be able to deal with even the most difficult materials. The Michelangelo FT work center can be equipped with a system of sky bellows that limit the escape of fumes, dust and shavings from the work area. In addition to preserving the machine mechanics, this application also helps to maintain a cleaner and healthier environment for the operator. INDUSTRIAL APPLICATIONS The 5-axis mechanical processes are used to make components and semi-finished products in different sectors, among which the most relevant are: cnc in the automotive industry are used to make resin and aluminum molds, style models, trimming of plastic, carbon and composite components cnc in the medical industry are used to cope with an increasingly high demand for processing dictated by the aging population that is playing an important role in the growth of the sector.
