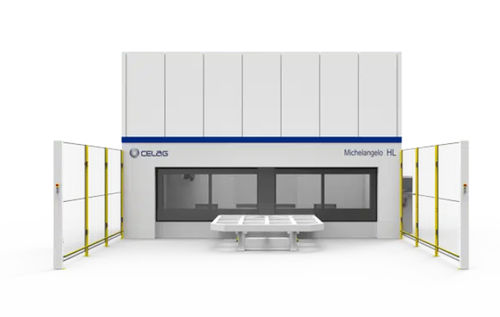

5-axis CNC machining center MICHELANGELO HL
verticalrotating tablefor aluminum

5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum - image - 2
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum - image - 3
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum - image - 4
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum - image - 5
5-axis CNC machining center - MICHELANGELO HL - Celag Srl - vertical / rotating table / for aluminum - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
rotating table
Machined material
for aluminum, for composites, for wood, for plastics
Spindle mount
HSK F63
Number of tool stations
8 tools
Other characteristics
precision, high-speed
X travel

4,000 mm, 5,000 mm
(157.48 in, 196.85 in)

Y travel

1,800 mm, 2,200 mm
(70.87 in, 86.61 in)

Z travel

1,200 mm
(47.24 in)

Power

Max.: 25 kW
(33.99 hp)

Min.: 11 kW
(14.96 hp)

Description

The Michelangelo HL Machining Center with Rotating Table is the ideal solution for high-speed machining on composite materials and is particularly suitable for productions that require the ability to machine many pieces in the shortest possible time. The rotating table guarantees maximum speed in production processes thanks to the possibility of loading and unloading in masked time Easy access to the outside of the work area allows you to load even the biggest pieces with great comfort and in total safety. OPERATING UNITS High torque even at low speed. The HSK interface guarantees torque transmission, speed and precision when changing tools. SUCTION AND CLOSING Michelangelo Hl with revolving table is equipped with a soundproof cabinet and a powerful suction system that allows you to deal with the work on the most demanding materials such as carbon, ensuring greater cleanliness of the work environment and greater operator safety.
