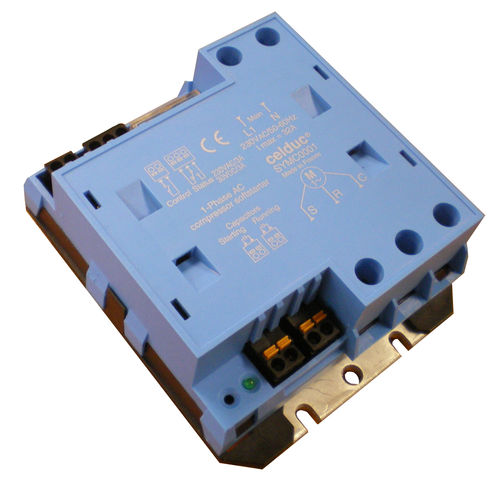

Motor soft starter SYMC000x series

staticsingle-phaseAC

Solid State soft starter especially designed for motors like compressors to be mounted on din rail or panel. -Startup current limitation to 45A max (Example: French standard NFC 15-100). -Waiting time of 2 minutes after a start (others versions on request). Delay adapted to protect the compressors. -The by-pass function eliminates power dissipation due to the thyristors (no need heatsink). -Voltage, current and by-pass diagnostic indicated by LED or TOR output (contact NC or NF). -Starting capacitor not included in standard product. -Designed in compliance with IEC60947-4-2.
