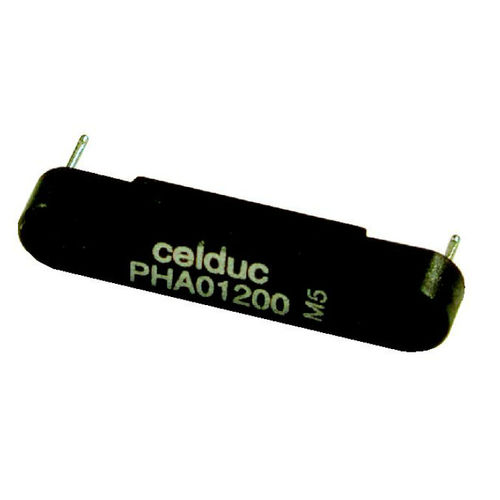

Magnetic proximity sensor PHA PHC series
rectangularwith switching function

Magnetic proximity sensor - PHA PHC series - celduc relais - rectangular / with switching function
Magnetic proximity sensor - PHA PHC series - celduc relais - rectangular / with switching function
Add to favorites
Compare this product


Characteristics

Technology
magnetic
Shape
rectangular
Output signal
with switching function
Measuring range

Min.: 17 mm
(0.67 in)

Max.: 18 mm
(0.71 in)

Description

The PHA01200 features a dielectric strength between contacts of 200 Veff. The magnetic proximity sensor provides an initial contact resistance of ≤ 100 mΩ. The unit utilizes a maximum frequency of 300 Hz, and resonnant frequency of 3000 Hz. Also, the device functions in a switching power of 10 W or 12 VA.
