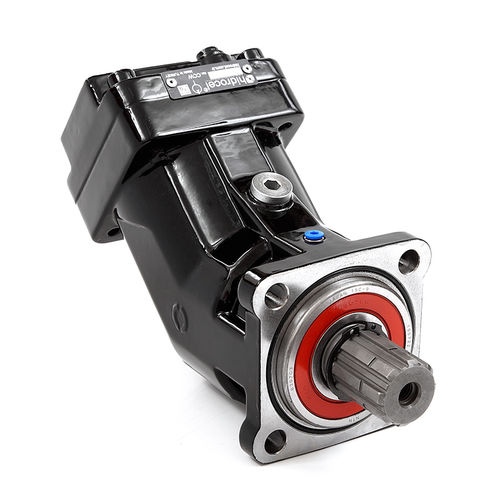

Axial piston hydraulic motor 2PBM 12 CC
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Pressure
Min.: 0 bar
(0 psi)Max.: 450 bar
(6,527 psi)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 8,800 rpm
(55,292.03 rad.min-1)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 66 Nm
(48.68 ft.lb)
Description
2PBM 12 CC DIN BENT AXIS MOTORS
TECHNICAL DATA
Displacement - 12,00 cc
Theoretical Oil Flow at Motor Speed - 12,00 cc at 1000 rpm
Theoretical Oil Flow at Motor Speed - 18,00 cc at 1500 rpm
Max. Continuous Speed - 8000 rpm
Max. Intermittent Speed - 8800 rpm
Max. Continuous Pressure - 400 bar
Max. Peak Pressure - 450 bar
Torque bar - 0.18 m.N/bar
Torque at 350 bar - 66 m.N
Weight (Without Accessories) - 9,00 kg
Weight (With Accessories) - 9,50 kg
VERSION - DIN
MOUNTING FLANGE - 4 BOLT
