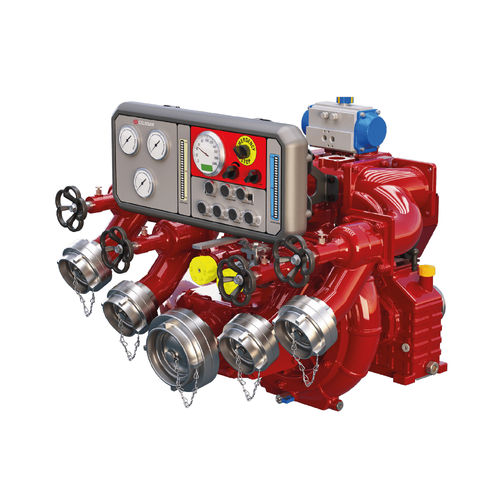

Water pump CNH 10-100 / 40-250with combustion engineself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with combustion engine
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- drain
- Material
- aluminum, bronze
- Protection level
- maintenance-free
- Other characteristics
- suction, mechanical, automatic, seal
- Flow
1,000 l/min
(264.17205 us gal/min)- Pressure
10 bar, 54.5 bar
(145.038 psi, 790.456 psi)- Fluid temperature
Max.: 72 °C
(161.6 °F)Min.: -15 °C
(5 °F)- Length
668 mm
(26 in)- Width
844 mm, 883 mm
(33.23 in, 34.76 in)- Height
740 mm
(29.13 in)- Weight
107.2 kg, 128.6 kg
(236.34 lb, 283.51 lb)
Description
It is the patented pioneer series of Çeliksan company. This series, which is one of the world's market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines.
Product Features
Low and high pressure pump
Compatible with a wide variety of modifications
Complies with EN 1028 standards
(Document No: 056632)
Maintenance-free mechanical seal and vacuum pump
Easy to clean high pressure filter
Light alloy high quality anodized aluminum body
High performance automatic suction system
Low pressure single stage aluminum fan
High pressure single stage bronze fan
High pressure by-pass system
Low sound level
Hot water tank for use in cold climate
Thermal drain valve 72°C
