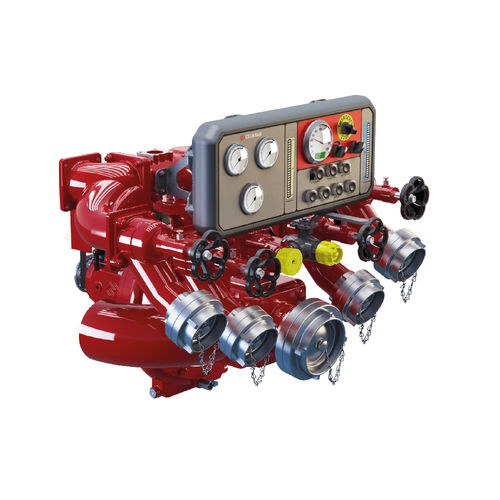

Water pump CN 10-300
with combustion engineself-primingcentrifugal

water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with combustion engine
Priming
self-priming
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Applications
drain, for vehicles
Material
aluminum
Protection level
maintenance-free
Other characteristics
suction, mechanical, automatic, seal
Flow

3,000 l/min
(792.51616 us gal/min)

Pressure

10 bar, 17 bar
(145.038 psi, 246.564 psi)

Fluid temperature

Max.: 72 °C
(161.6 °F)

Min.: -15 °C
(5 °F)

Length

845 mm
(33 in)

Width

787 mm, 818 mm
(30.98 in, 32.2 in)

Height

618 mm
(24.33 in)

Weight

87 kg, 109 kg
(191.8 lb, 240.3 lb)

Description

It is the patented pioneer series of Çeliksan company. This series, which is one of the world's market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines. Product Features Low pressure pump Compatible with a wide range of modifications Complies with EN 1028 standards (Document No: 056632) Maintenance-free mechanical seal and vacuum pump Lightweight alloy, high quality anodized aluminum body Suitable Mounting design for vehicles all over the world High performance automatic suction system Low pressure with single stage aluminum fan Low sound level Hot water tank for use in cold climates Thermal drain valve 72°C
