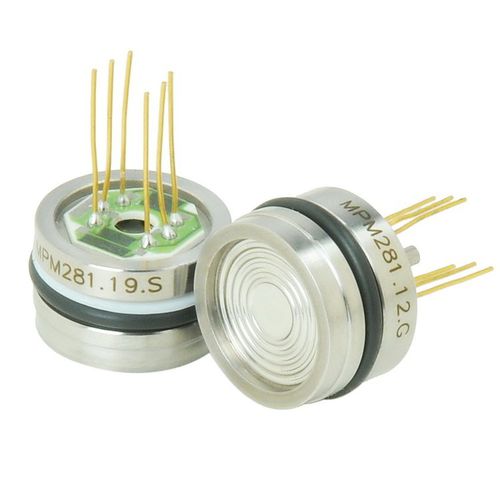

Relative pressure sensor MPM281 series piezoresistiveanalogfor gas
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- piezoresistive
- Output
- analog
- Fluid
- for gas, for liquids
- Other characteristics
- OEM
- Pressure range
Min.: 35,000 Pa
(5.08 psi)Max.: 70,000,000 Pa
(10,152.64 psi)- Process temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)
Description
features
Pressure sensor type MPM281 - High stable OEM
APPLICATIONS:
Industry processing control.
Level measurements.
Gasses pressure measurements.
Aviation & navigation measurements.
Pressure measurements instruments.
FEATURES:
Long-term stability: 0,1%FS/year.
Wide temp. compensation: -10°C - +80°C.
Wide pressure range: 0 - 35kPa...70MPa.
Non-linearity typical value: 0,1%FS.
Ø19mm standard O-Ring sealing.
Over-pressure: 2xFS.
Pressure type: Gauge (G), Absolute (A) and Sealed reference (S).
