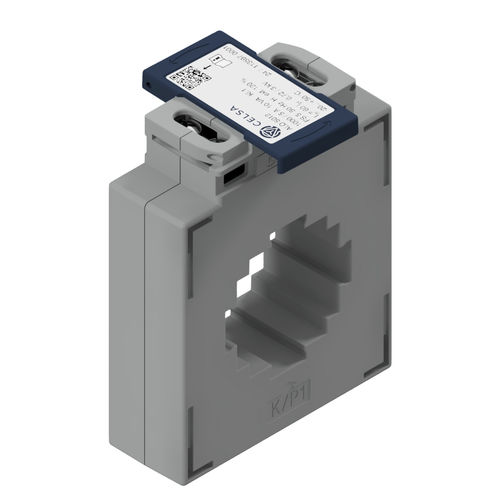

Current transformer ALO 5012instrumentcast resinfor indoor service
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument
- Configuration
- cast resin
- Applications
- for indoor service
- Mounting
- floor-standing, DIN rail mount
- Norms
- IEC
- Other characteristics
- compact, short-circuit
- Output power kVA
0.0013 kVA, 0.005 kVA, 0.01 kVA, 0.015 kVA, 0.02 kVA
(0.001768 hp, 0.006798 hp, 0.013596 hp, 0.020394 hp, 0.027192 hp)- Primary voltage
3 kV
- Secondary voltage
333 V, 720 V
- Primary current
100 A, 1,500 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
1. - This clip-on current transformer is mostly used for new installations, as the circuit must be interrupted here.
2. - Short-circuiting of the current transformer when the secondary terminal cover is open.
3. - More economical cable routing and lower power loss due to elimination of the transformer disconnect terminal.
4. - Easy handling facilitated by a rotatable and sealable secondary terminal cover.
5. - Suitable for both floor and side mounting.
6. - Most cost-effective and most common variant
7. - Simply plug the transformer onto the primary conductor (no need for complex wiring)
8. - Currently the most compact design on the market, thus wonderfully suitable for the control cabinet
9. - Other areas of application are machine and plant construction.
