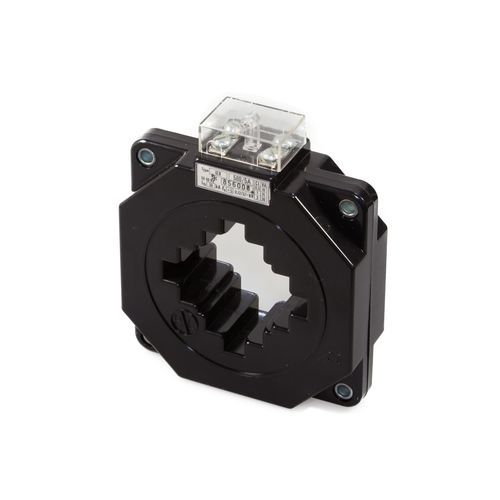

Current transformer IERcast resinfor indoor servicefor switching power supplies
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- cast resin
- Applications
- for indoor service, for switching power supplies
- Norms
- IEC, UL
- Other characteristics
- protection
- Output power kVA
Max.: 0.02 kVA
(0.027192 hp)Min.: 0.00125 kVA
(0.0017 hp)- Primary voltage
1.2 kV
- Secondary voltage
720 V
- Primary current
Max.: 2,000 A
Min.: 250 A
- Secondary current
1 A, 5 A
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
Article features
• - This protective current transformer is used for system protection in conjunction with the appropriate switching devices
• - Available in numerous protection classes
• - Sealable secondary terminal covers made of clear polycarbonate
• - Double secondary terminals on all versions for short-circuiting the secondary windings before opening the secondary circuit
Catalogs
No catalogs are available for this product.
See all of Celsa Messgeräte GmbH‘s catalogsOther Celsa Messgeräte GmbH products
Protective current transformer
