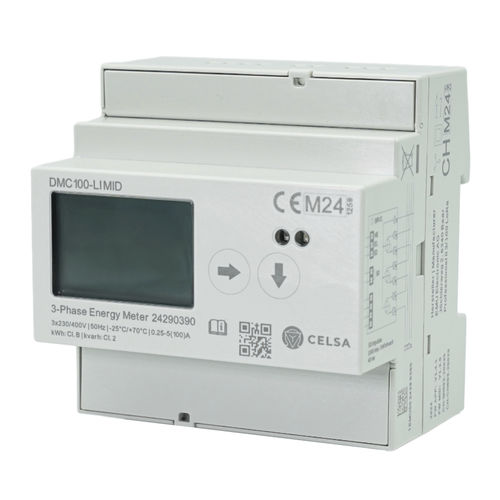

Three-phase electric energy meter DMC100-LI MID

DIN railwith LCD displayMID certified

The Celsa DMC100-LI LoRa is a 3-phase energy meter with MID approval and LoRa radio interface. The LoRa interface of the Celsa DMC100-LI LoRa 3-phase energy meter is based on the LoRa radio standard. This means that the energy meter can reliably transmit data over long distances, in areas without permanent communication or as a roaming device. To ensure a stable and high-performance connection to the LoRa gateway, the LoRa interface continuously adapts the optimum transmission and reception parameters. For easier integration of the energy meter, the status of the Lora network connection can be viewed on the display at any time. • Frequency band EU 863-870MHz • Type: Class C device • Two-way communication. • LoRa interface is ready to receive at any time (class C). • The LoRa interface has a signal strength of 14dbm. Note: If the LoRa energy meter Celsa DMC is operated in a Lora network that does not support class C devices, the energy meter Celsa DMC acts as a class A device. LoRa decoder The Celsa DMC LoRa is directly available as a template in the TTN network. We provide the decoder in GITHUB for integration into other systems. Link: GITHUB LoRa Decoder LCD display A 38x28 mm graphic LCD display with LED backlighting enables parameters and settings to be read with excellent visibility of the digits. LoRa energy meter configuration Each energy meter is delivered from the factory with the following configuration: • JoinMode: OTAA • DevEUI (starts with 102CEF) • Appkey • AppEUI (10 2C EF 00 00 00 00 00)
