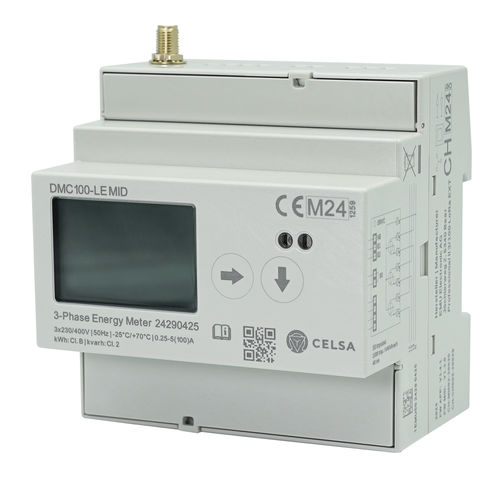

Three-phase electric energy meter DMC100-LE MID

DIN railwith LCD displayMID certified

The Celsa DMC100-LE MID ext. antenna is a 3-phase energy meter with MID approval and LoRa radio interface and has an internal LoRa antenna as well as an external antenna connection (SMA socket). Switching between the internal and external antenna is done on the display of the energy meter. The external antenna is not included in the scope of delivery. The LoRa interface of the 3-phase energy meter DMC100-LE MID (LoRa+antenna) is based on the LoRa radio standard. This means that the energy meter can reliably transmit data over long distances, in areas without permanent communication or as a roaming device. To ensure a stable and high-performance connection to the LoRa gateway, the LoRa interface continuously adapts the optimum transmission and reception parameters. For easier integration of the energy meter, the status of the Lora network connection can be viewed on the display at any time. • Frequency band EU 863-870MHz • Type: Class C device • Two-way communication. • LoRa interface is ready to receive at any time (class C). • The internal LoRa antenna has a signal strength of 14dbm. Note: If the LoRa energy meter Celsa DMC100-LE is operated in a Lora network that does not support class C devices, the energy meter Celsa DMC acts as a class A device. LoRa decoder The Celsa DMC100-LE MID ext. antenna is directly available as a template in the TTN network. For integration into other systems, we provide the decoder in the GITHUB. Link: GITHUB LoRa Decoder LCD display A 38x28 mm graphic LCD display with LED backlighting enables parameters and settings to be read with excellent visibility of the digits.
