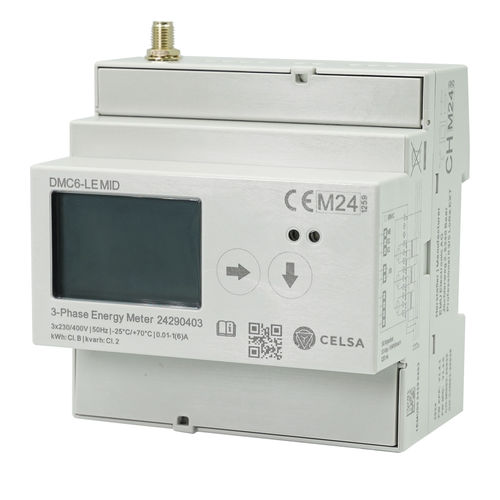

Three-phase electric energy meter DMC6-LE MID

DIN railMID certifiedwith LCD display

The Celsa DMC100-LE MID ext. antenna is a 3-phase energy meter with MID approval and LoRa radio interface and has an internal LoRa antenna as well as an external antenna connection (SMA socket). Switching between the internal and external antenna is done on the display of the energy meter. The external antenna is not included in the scope of delivery. This version has an internal antenna and an external SMA antenna connection. The LoRa interface of the Celsa DMC6-LE MID LoRa 3-phase electricity meter is based on the LoRa radio standard. This means that the electricity meter can reliably transmit data over long distances, in areas without permanent communication or as a roaming device. To ensure a stable and high-performance connection to the LoRa gateway, the LoRa interface continuously adapts the optimum transmission and reception parameters. For the integration of the electricity meter, the status of the Lora network connection can be viewed on the display at any time. • Frequency band: EU 863-870MHz • Type: Class C device • Two-way communication. • LoRa interface is ready to receive at any time (class C) • The interface has a signal strength of 14dbm. Note: If the LoRa electricity meter Celsa DMC6-LE is operated in a Lora network that does not support class C devices, the electricity meter DMC6-LE acts as a class A device. LoRa decoder The Celsa DMC6-LE MID LoRa ext. antenna is directly available as a template in the TTN network. We provide the decoder in the GITHUB for integration into other systems. Link: GITHUB LoRa Decoder
