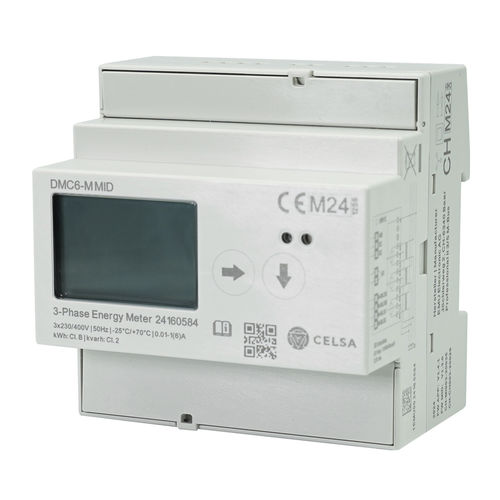

The Celsa DMC6-M MID M-Bus DIN rail meter for transformer connection is MID B+D certified. The energy meter has an integrated M-Bus interface and is suitable for energy management in accordance with ISO 50001 and energy cost billing.
M-Bus interface
The M-Bus interface is protected against contamination and manipulation in accordance with EN13757-2, -3 (formerly EN1434-3). The DMC6-M MID M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud.
Functions at a glance
• Bidirectional three-phase meter with M-Bus interface
• 3x230/400V
• Transformer connection /5 and /1A
• Current transformer ratio configurable several times
• Accuracy class B (1%)
• MID B+D, ex works for billing purposes
Retrievable measured values on the energy meter
• Active power (kw)
• Reactive power (kvar)
• Apparent power (kVA)
• Active energy consumption (kWh) and delivery (kWh)
• Reactive energy consumption (kvarh) and delivery (kvarh)
• Current (A)
• Frequency (Hz)
• Number of power failures
LCD display
The LCD graphic display (38x28 mm) facilitates the setting and reading of parameters thanks to LED backlighting. This ensures very good visibility of the digits.
The primary and secondary addresses can be set using touch-sensitive operating buttons. The M-Bus load of the Celsa DMC6-M MID M-Bus is only 1.5 mA, which corresponds to a standard load.
The readout data can be parameterised using the free EMU MB-Connect software. In this way, a customised M-Bus protocol can be put together. The S0 pulse rate and time can be configured via buttons (1/10/100/1000/10000 per kWh)
