Accuracy class - 1
Auxiliary supply - 40...300V AC-DC / 20...40V AC / 20...60V DC
Frequency - 45 - 65 Hz
Dimensions in mm - 96 x96 / 96 x48
• Fast & Easy Installation on panel with the help of external swivel screws.
• True RMS measurement.
• 4 Digits ultra bright LED Display.
• User selectable CT/PT Primary.
• User selectable CT/PT Secondary.
• User selectable 3ph3wire or 3ph4wire Network.
• Three auxillary Power Supply available 40V – 300V AC DC,
20-60V DC / 20-40V AC.
• Available in size: 96x96 y 48x96 mm

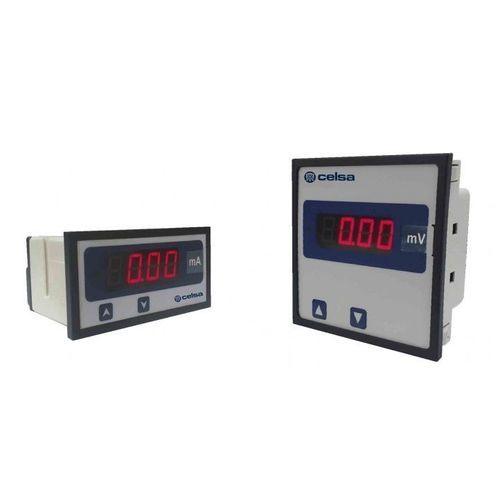

The digital panel meter programmable Eine DPM Eine have been designedfor industrial applications, which frequently require precise and on-site adjustment of the display range. It can be used in industrial automation and for laboratory uses.Programmable Eine DPM measures important electrical parameters in 3phase 4 Wire, 3 phase 3 Wire and single phase network and replaces themultiple analog panel meters.
True RMS measurement
The instrument measures distorted waveform up to 15th Harmonic.
User selectable CT Primary
The Primary of current transformer can be programmed on site from 1A to
999kA for Current DPM using front panel keys.
User selectable PT Primary
The Primary of Potential transformer can be programmed from on site 100
VLL to 999 kVLL for Voltage DPM (3V) and 57.5 VLN to 999 kVLN for Voltage DPM (V ) using front panel keys.
