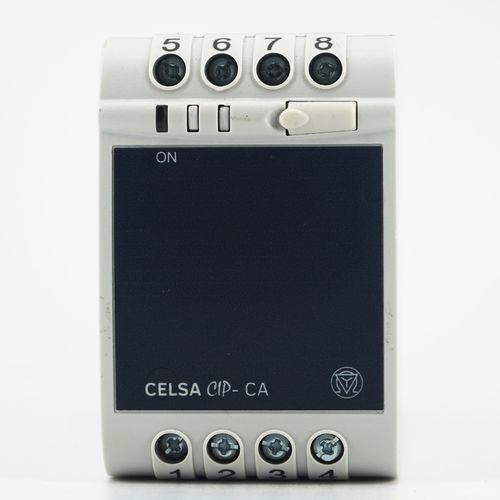

DIN rail transducer CIP series

AC voltageAC/DCanalog

The transducers CIP-V / CIP-I are used to measure and convert AC voltaje or current input into a load independent DC current or voltage output signal. Output signal generated is proportional to the root mean square value of the input current or voltage Type - voltage / current DC Class - 0.2 Dimensions - 65.5 x 43.75 x 106.5 mm • True RMD Measurement • Onsite selectable output type (DC current/ DC voltage) • Accuracy class 0.2 (IEC/EN60688) • Wide Auxiliary power supply which can be accept any between 60 - 300V AC/DC or 24V - 60V AC/DC • Output response time < 400ms • Fast and easy installation on DIN RAIL or onto a wall or in a panel using optional screw hole bracket • Connection terminal: Conventional screw type • CIP-V with LCD display Optional • Fully onsite programmable input range (for CIP-V) and input current range for CIP-I • Available in single or dual output type • Seven segment LCD Display • RS485 (MODBUS) Communication Application The transducers CIP-V / CIP-I are used to measure and convert AC Voltage or Current input into a load independent DC current or voltage output signal. Output signal generated is proportional to the root mean square value of the input Current or Voltage. Product Features Measuring Input AC voltage/current input signal, sine wave or distorted wave form Analog Output (Single or dual) Isolated analog output which can be set onsite either to voltage or current output.. Accuracy Ouput signal accuracy class 0.2 as per International Standard IEC/ EN60688. Programmable Input/Output The transducer can be programmed using front key and display or through RS485.
