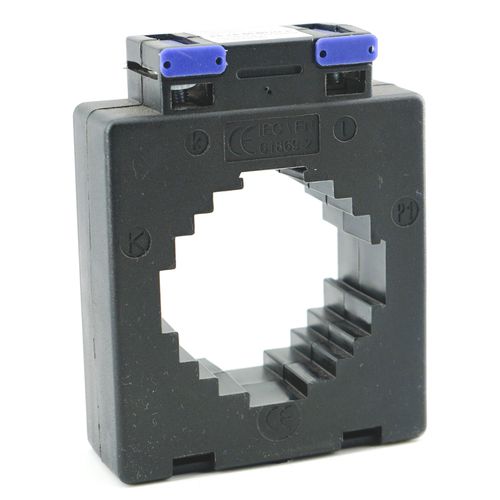

Current transformer AST615.5
instrumentdryfor indoor service

Current transformer - AST615.5 - CELSA MESSGERATE ESPAÑA S.L. - instrument / dry / for indoor service
Current transformer - AST615.5 - CELSA MESSGERATE ESPAÑA S.L. - instrument / dry / for indoor service
Add to favorites
Compare this product


Characteristics

Type
current, instrument
Configuration
dry
Applications
industrial, for industrial applications, for indoor service, for outdoor service, solar, for industrial use
Electrical characteristics
low-voltage
Mounting
DIN rail mount, in-line
Other characteristics
toroidal, with copper windings
Primary current

Min.: 200 A

Max.: 1,600 A

Secondary current

1 A, 5 A

Frequency

Min.: 50 Hz

Max.: 60 Hz

Description

Dimensions: 84 x 108 x 30 mm Round conductor: Ø 52 mm Primary bar: 60 x 15 mm 2 x 50 x 10 mm 40 x 40 mm General Mechanical Feature • unbreakable plastic casing, polyamide • difficult to inflame, according to UL 94 V0 and selfextinguishing • nickel-plated secondary terminals with plus minus screws (2 Nm) • integrated secondary terminal caps General Electrical Features • rated frequency 50-60Hz (other frequencies on request) • class of insulation E (other classes on request) • rated short-time thermal current Ith = 60 . IN • nominal surge current Idyn = 2.5 . Ith. • highest voltage for equipment Um = 0,72kV (other voltages on request) • rated power-frequency withstand voltage 3kV/1min • instrument security factor FS5 or FS10 Accesories (please indicate in the order): • Mounting feet (2 pieces) or • primary fixing device Special executions (On request): • Other ranges, classes or rated burden VA.
