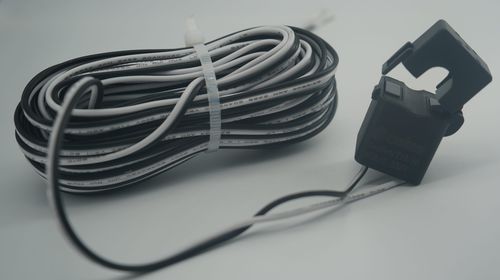

Current transformer TQ10split-coreindustrialplastic housing
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Applications
- industrial
- Mounting
- plastic housing
- Other characteristics
- secondary, open type
- Primary current
50 A, 60 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
• Designed to facilitate the installation in a new or already existing networks
• Easy openned
• They may be installed an connected without any supply interruption.
Dimensions in mm : 29 x 41 x 26
Round conductor : ⌀ 10 mm
The TQ10 is a miniature current transformer. It has the characteristics of small size, light weight, and easy installation. Rated current output is V. Inner hole size 10mm. The flame-retardant plastic housing, protected from moisture, stable in performance, and require no maintenance. When installin g this product, it s strictly prohibited to open circuit secondary. After connecting the secondary circuit, CT should be hung on the bus or fixed with nylon tie
