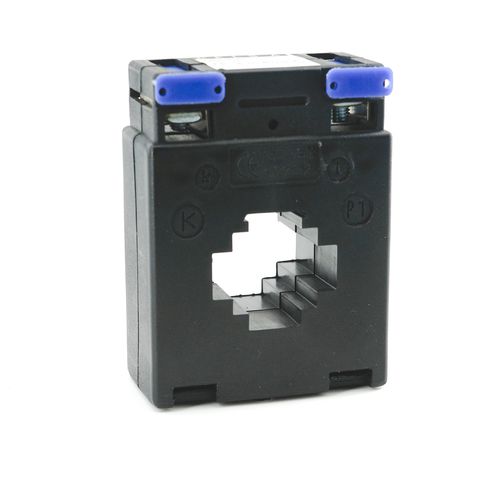

Transformer current transducer SCMU

DIN railDCAC

Dimensions in mm - 80 x 60 x 30 Analogue output - 0-20 mA or 0-10V without auxiliary supply Primary bar - 30 x 10 mm Round conductor - ⌀ 28 mm Current Transformer and transducer in one housing • Standard analogue output 0 - 20 mA / 0 - 10 V Application The measured quantity (i.e. primary current) is galvanically insulated (5kV/1 min), rectified (mean value principle) and converted into a proportional and load-independent DC signal current (or voltage). The passive type SCMU210s does not require auxiliary supply. Snap-on mounting for DIN- rail, mounting brackets for mounting plates and screws for the busbar fixing are included in delivery
