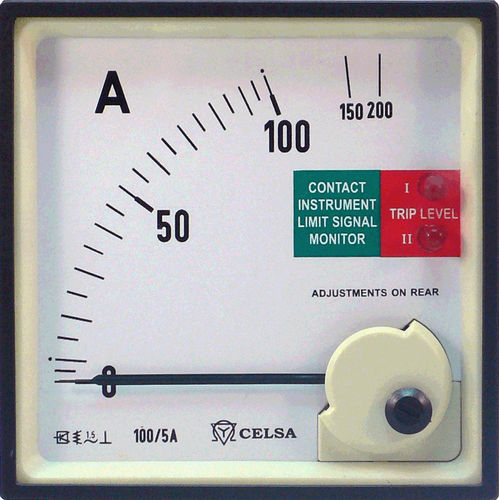

DC panel meter PQC series

dialpanel-mount

Dimensions - 96 x 96 mm Self-shielding moving-coil system, with core magnet and hairsprings for the creation of the restoring torque, with an dditionally electronic limit control. Pivot suspension with spring loaded jewel bearings for vibration and shock resistance. Auxilliary supply: 230 V ~ ± 10 % (50-60 Hz) other voltages on request Output relays: 2 changeover relays, potential free Hysteresis: 2 % of the full scale Repetibility: 1 % of the full scale Adjustment with potentiometer: from 0 to 100 % of the nominal range of scale1) Tolerance ± 5 % Time delay: 0 to 30 sec. ± 3 sec. Tolerance ± 5 %
