Buse tire changer SMT56

for trucksfor tractorssemi-automatic

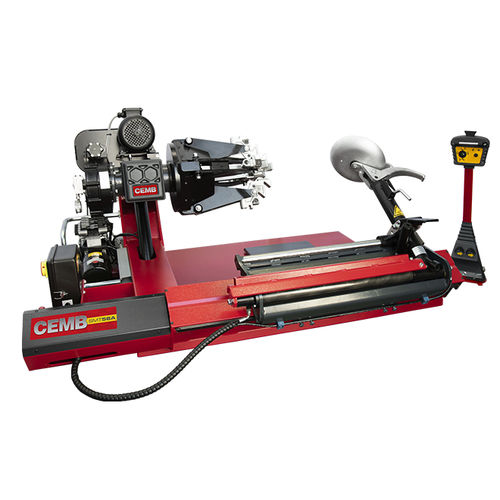

Semi-automatic truck tyre changer Universal electro-hydraulic truck tyre changer designed for tubeless or inner tube tyres of trucks, buses, tractors and earth moving machines with a maximum diameter of 2300 mm and a maximum width of 1300 mm for SMT56A and 1150 mm for version SMT56. Conceived for intensive and professional purposes, the self-centering chuck locks grooved and split ring rims from 14” to 42” and its working capacity can be increased up to 56” using the optional extensions. Self-centring chuck The hydraulic chuck has working capacity from 14” to 42” and its clamping capacity can be also extended till 56” using the optional extensions. It performs a 2-speed rotation in both directions. The special clamp profile with 5 clamping points allows also several clamping solutions. Tool-Holder carriage Automatic translational movement of the tool-holder carriage for both version. Automatic tool arm movement (translational) for SMT56A and manual for version SMT56. Tool-Holder arm Manual tool-holder arm lifting and tool rotation with quick unloocking device. Safety devices The SMT56A/56 tyre changer are equipped with safety devices designed to guarantee the utmost operator safety and a magnetothermal switch to protect the electric motor. Control unit The machine is equipped with a low voltage portable control unit, easily movable inside the working area. The rational lay-out of control levers, buttons and pedals prevents the operator from making accidental and dangerous operational errors.
