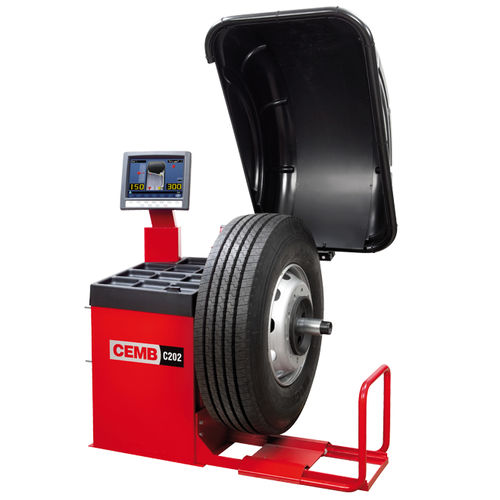

Truck wheel balancer C202SE

"Industrial based machine for balancing wheels of truck and buses " The structural sturdiness, combined with the pneumatic locking of wheel and gaue with automatic entry of the wheel data, make the C202SE a very robust, reliable of fast machine. Due to its extremely reduced cycle time, it is the first choice of major OEM of truck ad tyres. Unique features C202SE has unique features with make it an idean machine for truck tire shops and industrial batch balancing (OEM) lines: the extended shaft diameter (⌀ 65mm), the pneumatic locking desined for heavy duty use and the braking system (end spin cycle) developed to handle large and heavy loads. Pneumatic lift Pedal operated ergonomic and fast pneumatic lift guarantees an optimal centering of wheel on flange. User friendly: after lifting wheel in proximity of the shaft the operator can adjust wheel height using its own mass to manoeuvre relative handle-bar. The exact coupling between tyre and flange is thus obtained in an accurate and rapid manner. EMS Sonar for radial eccentricity measurement (Run-Out) Vibrations generated by radial eccentricity do not depend on wheel unbalacne. The EMS Sonar enables, in a single quick spin, to detect all causes of vibration by measuring wheel eccentricity with a 0,1 mm accuracy, to obtain an accurate diagnosis in a very short time frame.
