Drain oil vacuum cleaner 10690

pneumaticmobile

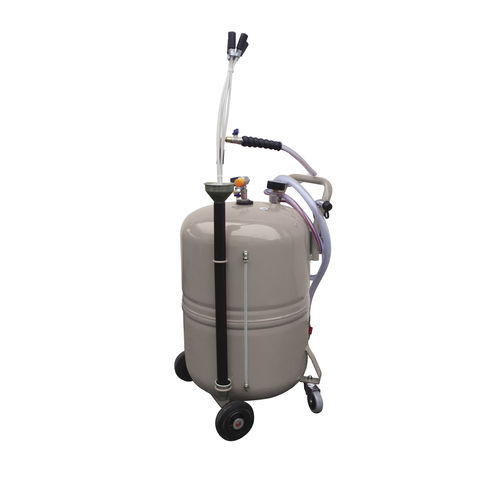

Pneumatic oil suction unit, 801 Order-number: 10690 Details Pneumatic oil suction unit Compressed-air operated mobile oil extractor Ideal for quick oil changes on larger vehicles such as lorries, tractors, and cars, etc. A vacuum is generated in the tank with the aid of compressed air. The oil can then be decentrally extracted from the engines using the extraction probes, independently of a compressed-air connection. Ideal oil temperature 70 -80 °C. Tank is drained by compressed air. Technical data 8726 and 10145: -mobile 65 I resp. 90 I container with level indicator, vacuum indicator and 1-bar relief valve -compressed-air connection V* -removable tool tray -extraction hose 2 m with probe adapter -7 different flexible and rigid probes; direct adapters for Mercedes, VW, BMW and Citroen -drain hose 2 m -max. extraction volume 52 I resp. 75 I -maximum hopper height 188 cm (model 10145) Technical data 10690 and 10691: -mobile 80 I container with level indicator, vacuum indicator and relief valve -compressed-air connection V* -extraction hose 1.5 m with probe adapter -5 different flexible and rigid probes from 5 mm up to 8 mm -drain hose Description Pneumatic oil suction unit, 901, with collection hopper 62 x 42 x 138
