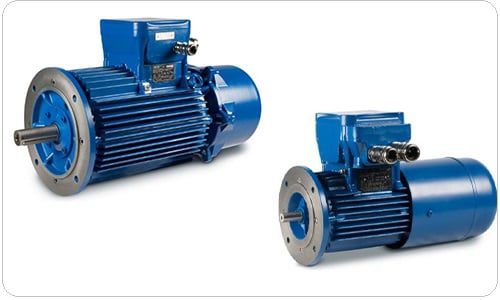

AC brake motor E series asynchronous400 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 400 V
- Protection class
- IP55, IP56, IP65, IP66, ATEX, flameproof, for hazardous areas, IECEx
- Efficiency classes
- IE2, IE3, IE4
- Number of poles
- 4-pole, 6-pole, 8-pole, 2-pole
- Applications
- for winches, for crane, for marine applications, for the mining industry, for the oil and gas industry
- Power
Max.: 200 kW
(271.924 hp)Min.: 0.75 kW
(1.02 hp)
Description
The main Industries these brake motors are used for:
According to standards:
• IEC/EN 600079-0, 1, 7, 31
• IEC 60034-1, 2, 5, 6, 7, 8, 9, 12, 14, 30
• IEC 60072
• Motor enclosure Ex db (flameproof) and brake in separate Ex db enclosure
• Terminal box Ex db or Ex eb available
• Multiple choice for brake torque available
• Continuous duty or intermittent duty
• Ex db, Ex db eb, Ex tb, Ex tc
• Gas group IIB, IIC
• Dust group IIIB, IIIC
• Temperature classes T3, T4, T5, T6
• Surface temperature classes (Dust) T150°C – T135°C – T125°C – T100°C – T85°C
• Frame size from 80 to 315 (IEC)
• Special execution available up to -60/+80°C
• Forced cooling (IC416); Not ventilated (IC410)
• Certified GMEE
