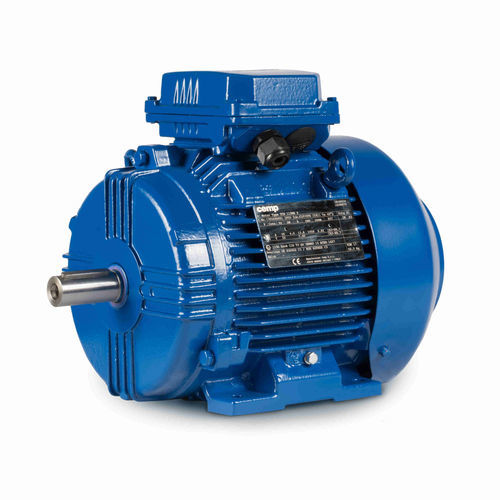

AC motor E3TI3008315B30D41100asynchronous400 V230 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 400 V, 230 V
- Protection class
- IP55, IP66, rugged
- Configuration
- squirrel cage, cast iron
- Efficiency classes
- IE3, IE4
- Number of poles
- 8-pole
- Other characteristics
- low-voltage
- Power
75 kW
(101.972 hp)- Intensity
154 A
- Rotational speed
743 rpm
(4,668.41 rad.min-1)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

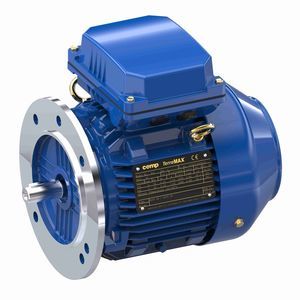

TCI series motors, built on the global low voltage TerraMAX motor platform, are IE3 & IE4 efficiency totally enclosed fan cooled motors suitable for general industry applications. The TCI series motors inherit the premium features of state of the art TerraMAX motor platform, while delivering energy savings. The rugged construction of the TCI series motors meets the industry requirement for all tough and demanding applications. The complete range is manufactured in our Italian plant in Senago, Milan, Italy.
• COMPLETE TECHNICAL DATA AVAILABLE ON DEMAND
• Insulation: Class F with class B temperature rise
• Mounting: B3 - Available B5, B14, B34, B35, V1 on request
• Fan: Bi-directional fan
• Drive Suitability: Suitable for variable torque duty (10:1)
• Thermistors: PTC included as standard
• Paint: RAL 5010 standard. Special painting available on request
