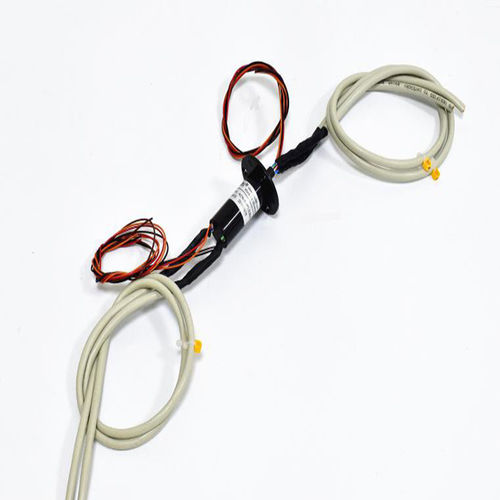

Ethernet slip ring ACN-04P1-02EGcapsuleindustrialplastic
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet
- Construction
- capsule
- Applications
- industrial
- Material
- plastic
- Other characteristics
- compact, IP54, low-torque
- Voltage
Max.: 24 V
Min.: 0 V
- Primary current
5 A
- Rotational speed
Max.: 100 rpm
(628 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
6 unit
Description
Capsule slip ring with Ethernet signal is widely used in automation equipment, it can combine various signal and power for stable transmission, no cross talk, low loss, it also can be provided with RJ45 connector for connection to transmission HD video, high-speed digital signal.
• Current : 2*5A(12V) ; 2*5A(24V) ; 2 group*1000M Ethernet
• Dielectric strength :
≥200VAC@50Hz(Power)
≥100VAC@50Hz(Signal)
• Insulation resistance :
≥100MΩ@200VDC（Power）
≥10MΩ@100VDC（Signal）
• Lead wire length : 500mm
• Lead wire size : AWG22# ;CAT5E Lead Wire
• Working temperature : -20℃~+60℃
• Working speed : 0~100rpm
• Contact material : Precious metal
• Housing Material : engineering plastics
